Discover how you can control IoT devices from any ecosystem#

The main goal of this booth is to introduce you to Matter, the “open-source, royalty-free smart home connectivity standard.”

As a hacker with 20+ years of experience, my IoT recommendation in the past was to avoid IoT devices unless you build them yourself. There were serious security, privacy, and/or stability issues with IoT devices in the past. But finally, there is Matter worth considering. Control your home IoT devices in an open, secure, private, cross-platform way, or even build your own IoT!

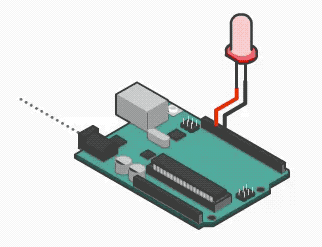

LED blink

We have designed six ways for you to discover and play with the Matter technology:

  1. Home Assistant
  2. Apple Home
  3. Google Home
  4. Ubuntu/Linux (probably works with all distros using snap)
  5. macOS
  6. Node.js
  7. Python

Don’t forget to check out the Challenges page!

To choose which option suits you for the LED challenge, I created the following handy guide:

_ Home Assistant Apple Home Google Home Ubuntu macOS Node.js Python
Have to download and install a new app? yes no maybe yes yes yes yes
Share your e-mail with the organizer? no no * yes no no no no
Need a mobile device? iOS/Android iOS Android no no no no

* - See the Apple Home page for details.

dog

I want to play with this at home#

Cool :-) You can do this at home by visiting this guide from Canonical . You can use more recent Ubuntu versions—you do not have to stick with the old ones recommended in the post.

For the full Matter experience, you might need a Thread Border Router to support Thread devices as well:

Apple: Apple TV 4K latest gen (with Ethernet and Thread support), or an Apple HomePod (latest gen)

Google: Google Nest Hub (2nd gen), Google Nest Hub Max, or Google WiFi Pro

Home Assistant: Home Assistant Yellow, Connect ZBT-1 details

I want to hack!#

See hacking details: Hack

FAQ#

  1. Who else supports Matter? Practically everyone who matters. Samsung, Amazon, Arduino, IKEA, Bosch, EVE, Nanoleaf, Infineon, Silicon Labs, Espressif, Huawei, LG, Nordic, NXP, STM, and over 600 other companies. See the list of companies involved here .

  2. What is the goal of this Matter demo?

For years, IoT was a “joke” when it came to security and how the hacker community perceived it. I would like to change this view by showing that IoT can be secure, private, and open-source. Whether you want to buy something that just works or build your devices yourself, Matter is here to help.

  1. Is there a bug bounty for reporting vulnerabilities in Matter?

Please refer to CSA website for details.

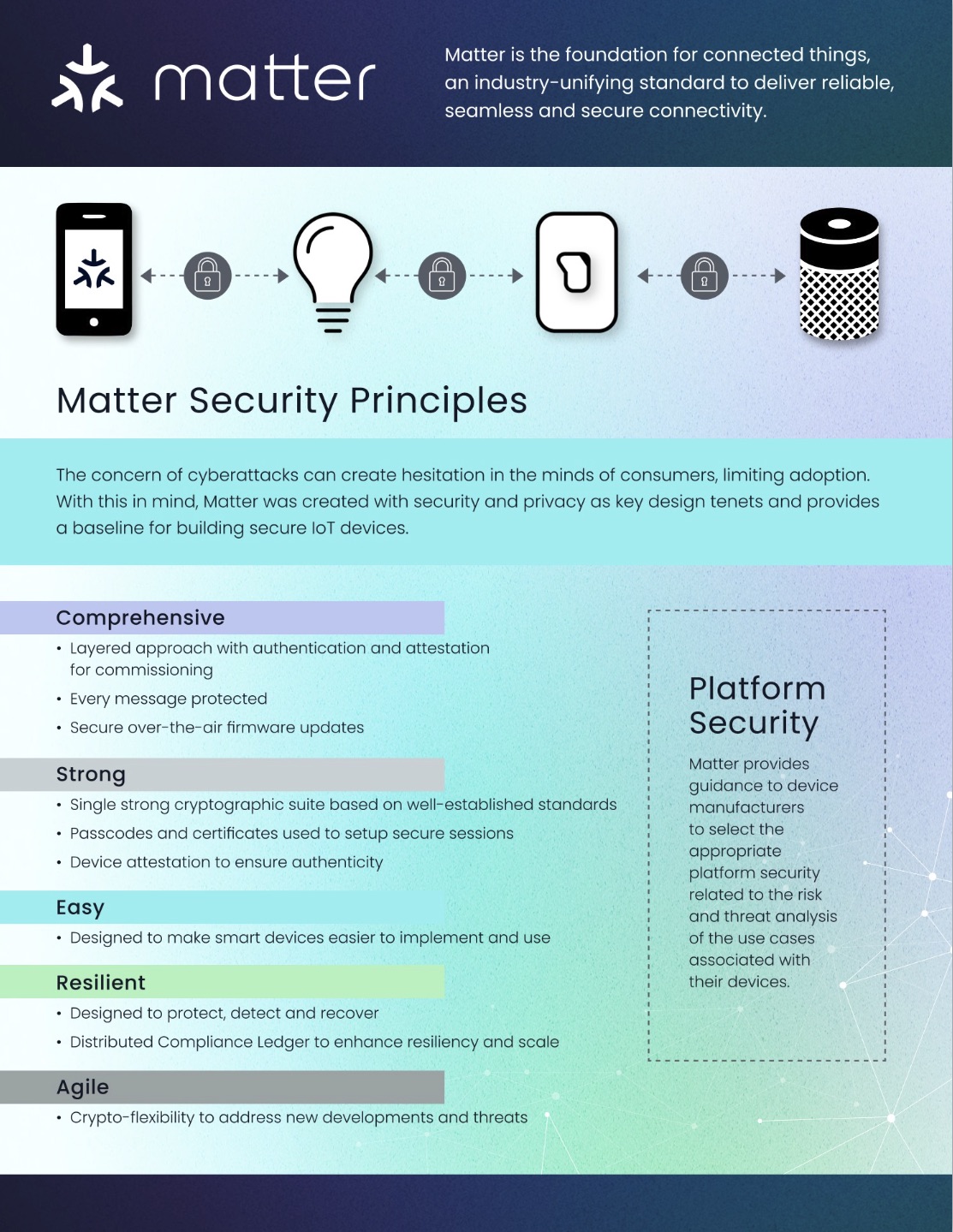

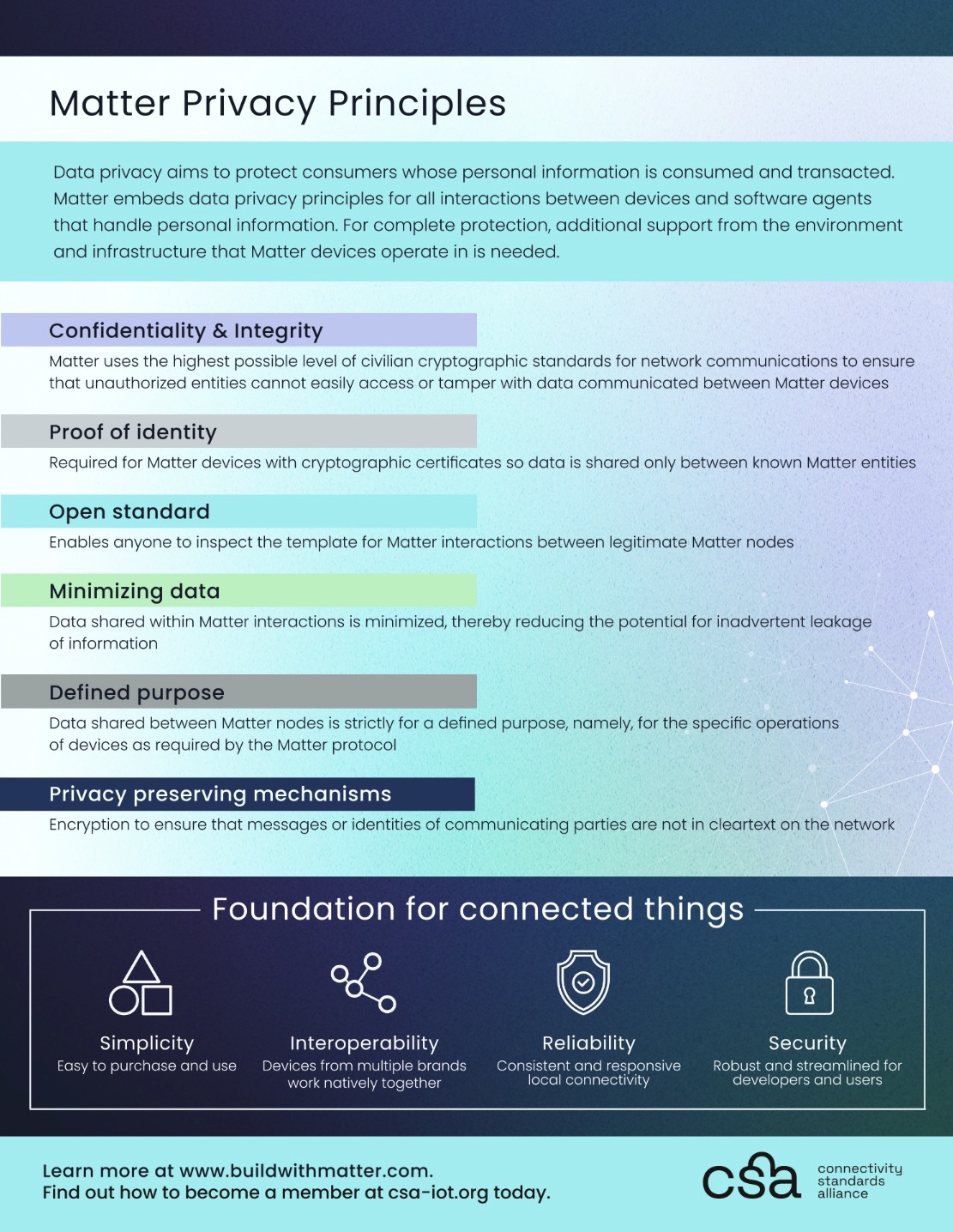

  1. How is security and privacy implemented in Matter? choose station choose station

  2. Can I commission the LED into multiple ecosystems at the same time?

Yes. Check the device settings in the current ecosystem. Find an action called “turn on pairing mode” (Apple), “linked matter apps and services” (Google), or “share device” (Home Assistant), or use “chip-tool pairing open-commissioning-window 110 1 400 2000 3840” in Linux and search for the line “Manual pairing code”.

  1. What type of devices are supported by Matter 1.4?

  • Utility Device Types

    • Root Node
    • Power Source
    • OTA Requestor
    • OTA Provider
    • Bridged Node
    • Electrical Sensor
    • Device Energy Management

  • Application Device Types

    • Lighting
      • On/Off Light
      • Dimmable Light
      • Color Temperature Light
      • Extended Color Light
    • Smart Plugs/Outlets and Other Actuators
      • On/Off Plug-in Unit
      • Dimmable Plug-in Unit
      • Mounted On/Off Control
      • Mounted Dimmable Load Control
      • Pump
      • Water Valve
    • Switches and Controls
      • On/Off Light Switch
      • Dimmer Switch
      • Color Dimmer Switch
      • Control Bridge
      • Pump Controller
      • Generic Switch
    • Sensors
      • Contact Sensor
      • Light Sensor
      • Occupancy Sensor
      • Temperature Sensor
      • Pressure Sensor
      • Flow Sensor
      • Humidity Sensor
      • On/Off Sensor
      • Smoke CO Alarm
      • Air Quality Sensor
      • Water Freeze Detector
      • Water Leak Detector
      • Rain Sensor
    • Closures
      • Door Lock
      • Door Lock Controller
      • Window Covering
      • Window Covering Controller
    • HVAC
      • Thermostat
      • Fan
      • Air Purifier
    • Media
      • Basic Video Player
      • Casting Video Player
      • Speaker
      • Content App
      • Casting Video Client
      • Video Remote Control
    • Robotic Devices
      • Robotic Vacuum Cleaner
    • Appliances
      • Refrigerator
      • Temperature Controlled Cabinet
      • Room Air Conditioner
      • Laundry Washer
      • Dishwasher
      • Laundry Dryer
      • Cook Surface
      • Cooktop
      • Oven
      • Extractor Hood
      • Microwave Oven
    • Energy Devices
      • EVSE
      • Water Heater
      • Solar Power
      • Battery Storage
      • Heat Pump
    • Network Infrastructure Devices
      • Network Infrastructure Manager
      • Thread Border Router

    For a more detailed matrix, refer to: matter-smarthome.de
